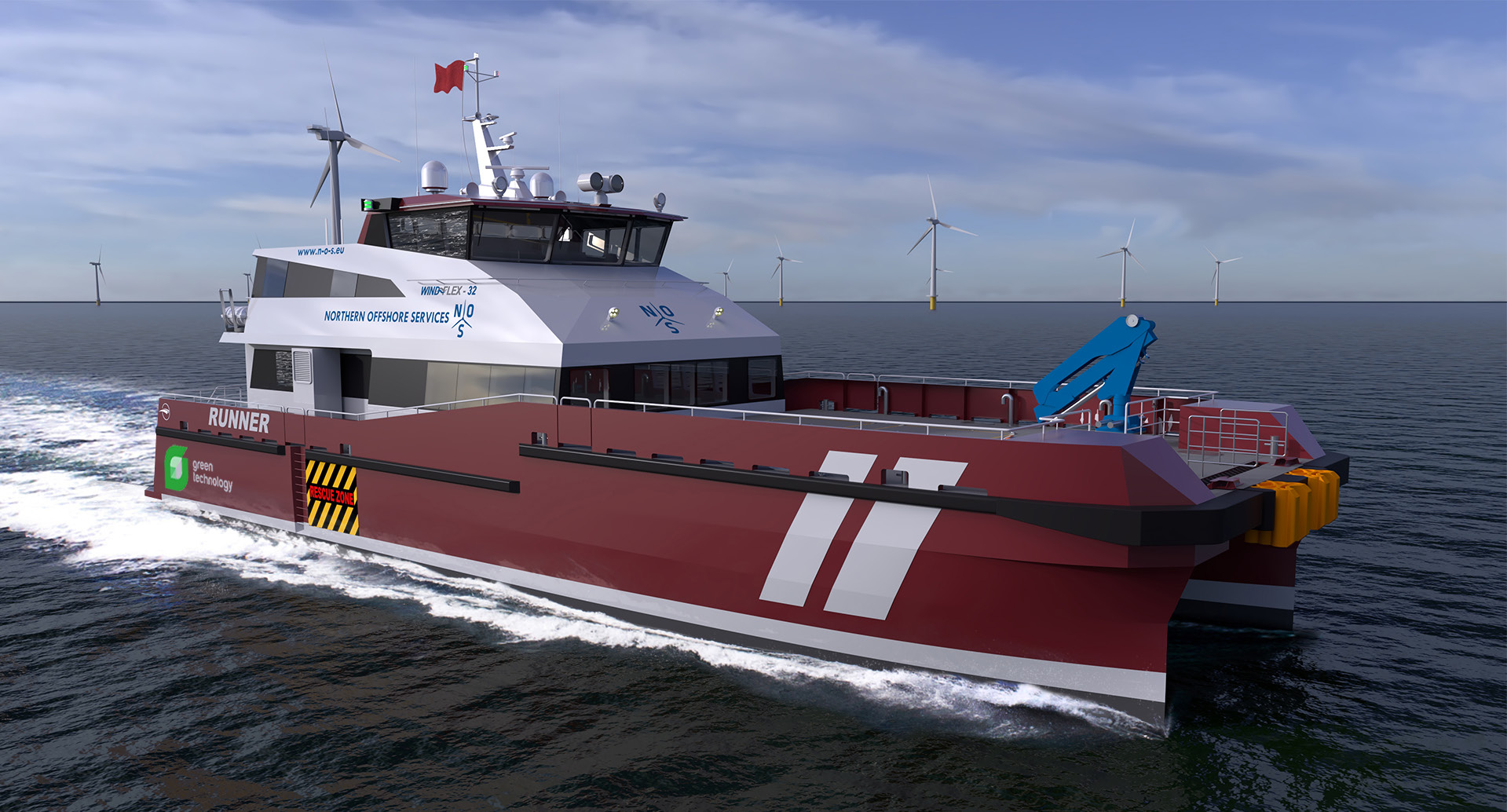

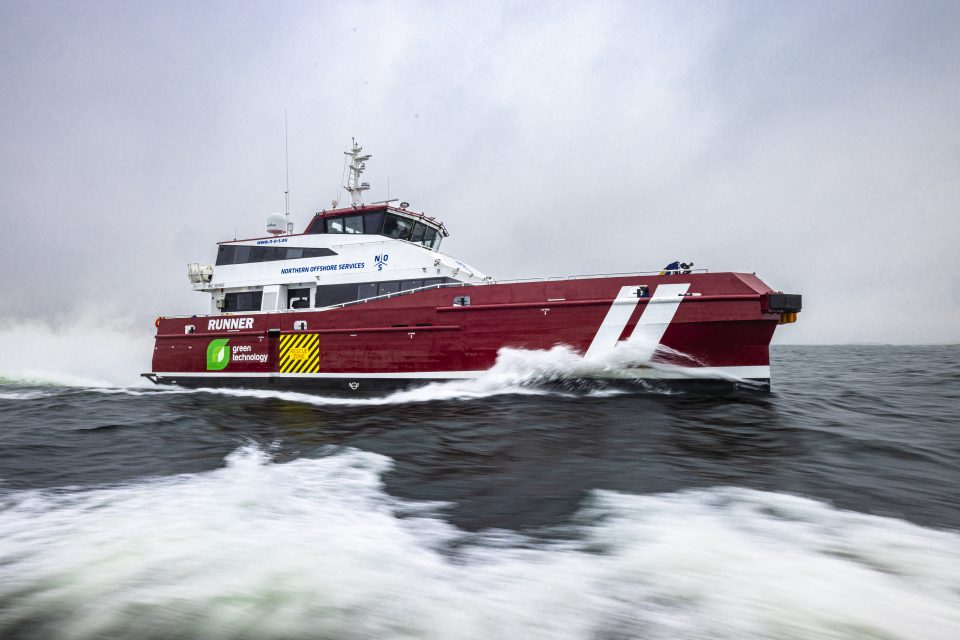

The R-Class vessels have been customized and modified to fit the N-O-S standard and high expectations of comfort and performance.

                    The vessel is marked with the “Green Technology” logo, as this is part of the initiative taken by N-O-S to decrease the carbon footprint in operations and make the fleet greener. Furthermore, the vessel has a large cargo capacity and has been designed for 24-hour operations. A lot of effort has been put into the design of the PAX saloon to improve the comfort and facilities for technicians being transported.
Description
| Built 2023 | Penguin Shipyard |
|---|---|
| Class notification | BV, I HULL MACH, Wind farm service ship - M0, sea area 3, Electric hybrid prepared (PM, PB) |
Vessel Specification
Overview
| Flag | Danish |
|---|---|
| Call sign: / IMO no. | OZCT2 / 9991965 |
| Gross tonnage | 342 t |
| Hull | Aluminium |
| Length | 32 m |
| Beam | 10 m |
| Operational draft | 1,9 m |
| Bunker capacity | 35 500 l |
| Fenders: | N-O-S high grip fender |
CARGO HANDLING
| Total fwd + aft deck area: | 90 + 24 m² |
|---|---|
| Max cargo capacity | 20 t |
| Deck load | 2 t/m² |
| Deck crane: | Palfinger PK12000 |
| Max lifting capacity @ max outreach | 550 kg @ 12,4 m |
| Container(s) | 2x 10’ / 1x20’ |
MAIN AND AUXILIARY MACHINERY
| Main engines | 4x Volvo Penta D13 (Tier III) |
|---|---|
| Output | 4x 588kW @ 2300 rpm |
| Propulsion | 2x Volvo Penta IPS30 |
| Auxiliary engines | 2x Volvo Penta D4 |
| Output | 2x 112 kW |
NAVIGATION AND COMMUNICATION EQUIPMENT
| GMDSS | A1 + A2 |
|---|---|
| El. chart system | ECDIS |
| Recordable CCTV | Yes |
| Monitoring system | Reygar |
PASSENGER FACILITIES
| Seats | 24 |
|---|---|
| Changing and storage room | 5 m² |
| Internet access | Wi-Fi |
| Entertainment | TV, Radio |
| Coffee lounge | Yes |
| Toilets | 2 |
| 180 degrees visibility | Yes |
GREEN TECHNOLOGY
INSTALLED
| Battery manufacturer | ZEM |
|---|---|
| Battery pack | 2x 94 kW |
| Future proof | Prepared for hybrid propulsion |
